NTF 316/350 Fixed Mount Barcode Scanner - High-Speed USB Industrial Barcode Reader for Retail, Warehouse & Logistics - Durable Barcode Scanner for POS, Inventory Management & Shipping
$329.45 $599
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:24 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:31422372
Guranteed safe checkout
Product Description

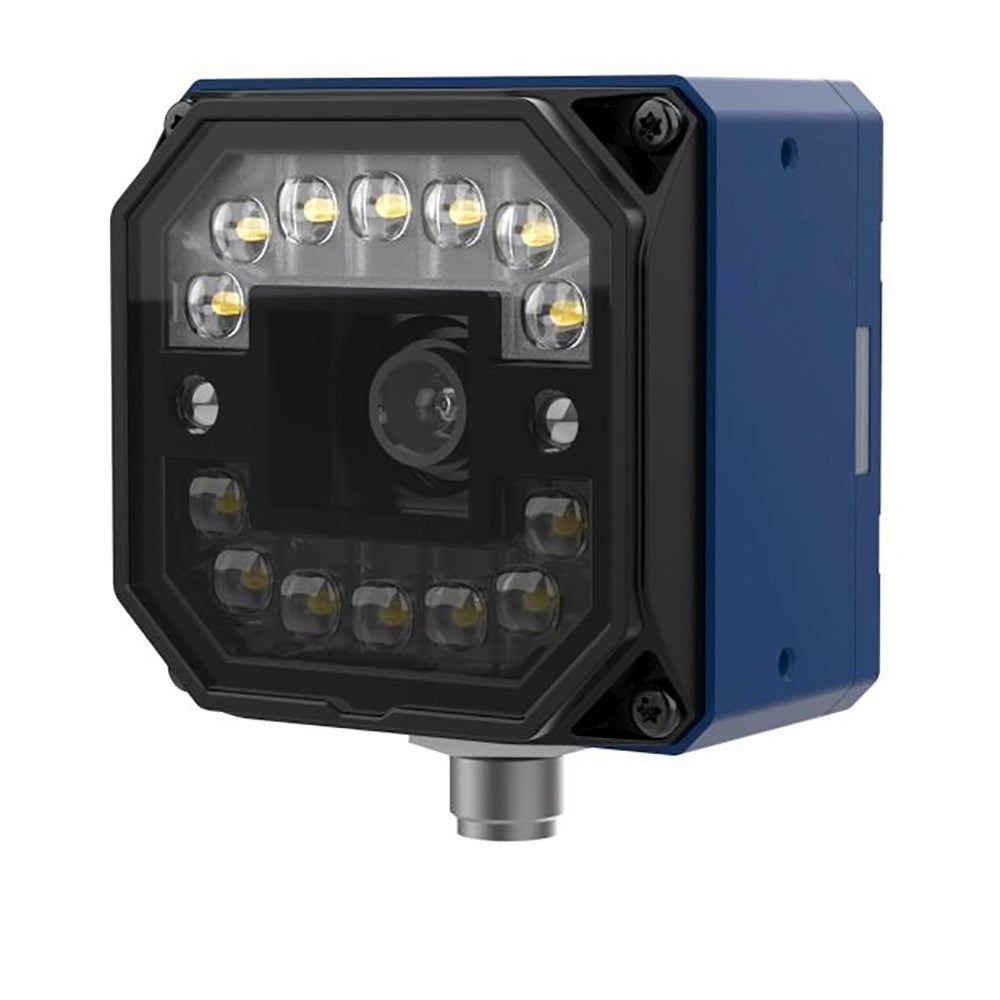

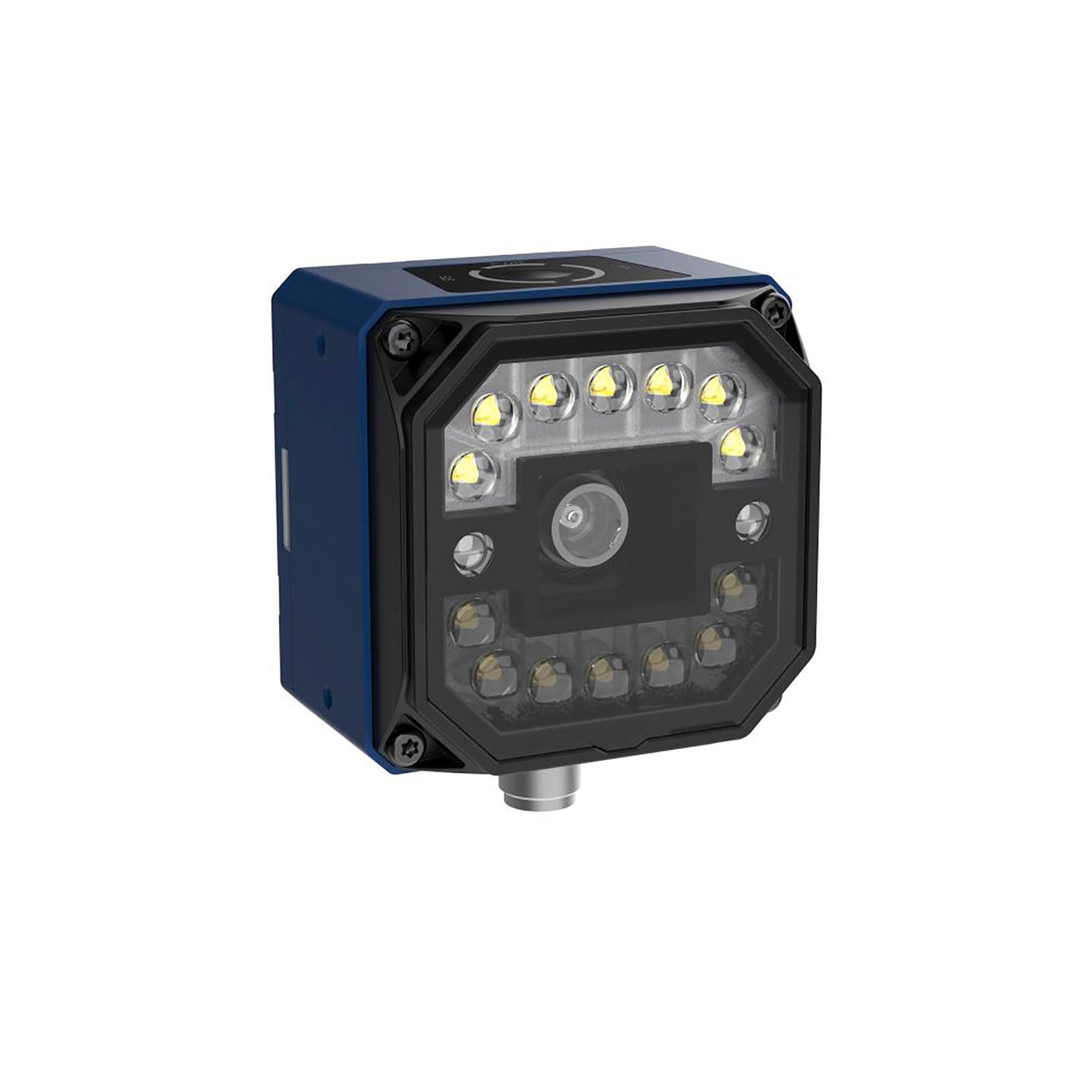

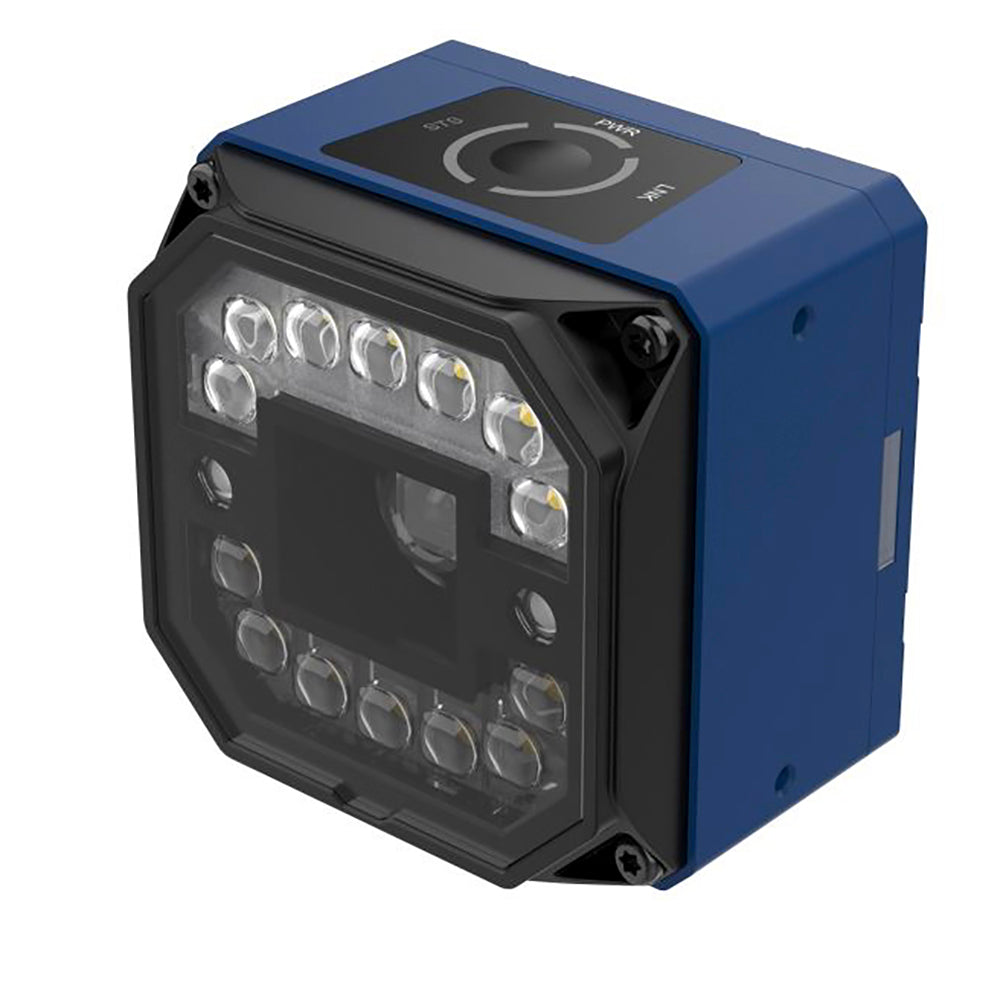

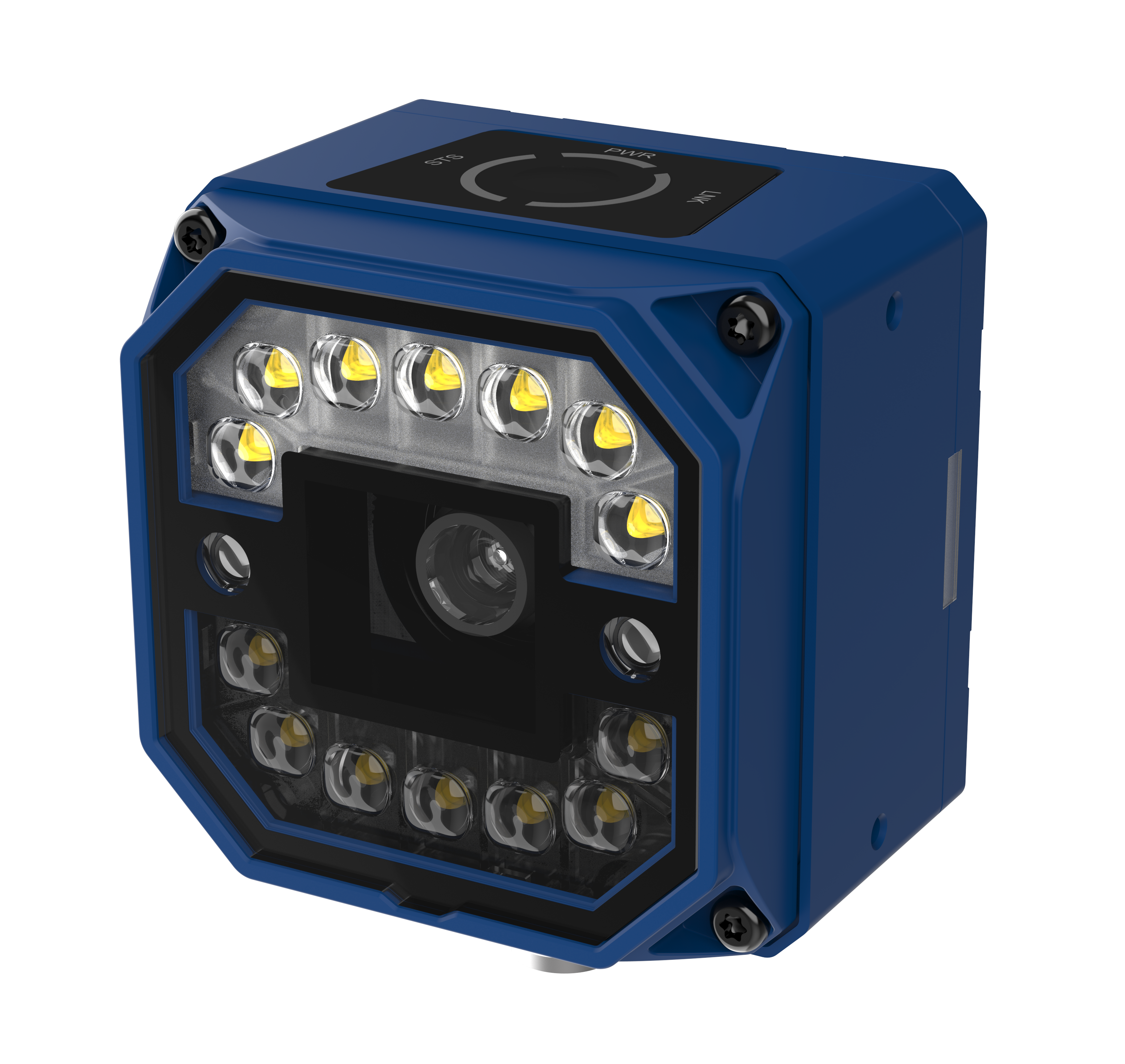

NETUM Industrial Fixed 2D Image Barcode Scanner
| Model：NTF-316 | Model：NTF-350 |
| Resolution: 1280 X 1024 | Resolution: 2368 X 1760 |
| Decode Capabilities: | Decode Capabilities: |
| 1D:? | 1D:? |
| Code 39, Code 93, Code 128, Codabar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, Code 11 and Industrial 25 | Code 39, Code 93, Code 128, Codabar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, Code 11 and Industrial 25 |
| 2D: | 2D: |
| PDF 417, Data Matrix, QR Code | PDF 417, Data Matrix, QR Code |
| Max. Frame Rate: 60 fps | Max. Frame Rate: 30 fps |
| Max. Reading Speed:?84 codes/sec | Max. Reading Speed: 60?codes/sec |
| Sensor Type:?CMOS, global shutter | Sensor Type:?CMOS, global shutter |
| Pixel Size: 4 μm x 4 μm | Pixel Size: 3.2?μm x 3.2?μm |
| Sensor Size:?1/2.7” | Sensor Size:?1/1.7” |
| Exposure Time:?35 μs to 1 sec | Exposure Time: 60?μs to 1 sec |
| Gain: 0 dB to 15 dB | Gain: 0 dB to 18?dB |
| Mono/Color:?Mono | Mono/Color:?Mono |
| Communication Protocol: | Communication Protocol: |
| SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP |
| Electrical Feature: | Electrical Feature: |
| Data Interface:?Fast Ethernet | Data Interface:?Fast Ethernet |
| Digital I/O:? | Digital I/O:? |
| 17-pin M12 connector provides power and I/O, including non-isolated input (Lineln 0/1/2) x 3, non-isolated output (LineOut 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported. | 17-pin M12 connector provides power and I/O, including non-isolated input (Lineln 0/1/2) x 3, non-isolated output (LineOut 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported. |
| Power Supply:?24 VDC | Power Supply:?24 VDC |
| Max. Power Consumption:? | Max. Power Consumption:? |
| Approx. 20 W@24 VDC (light source enabled) | Approx. 47.5?W@24 VDC (light source enabled) |
| User Environment | User Environment |
| Lens Mount: | Lens Mount: |
| M12-mount, mechanical autofocus supported. | M12-mount, mechanical autofocus supported. |
| Lens Cap:? | Lens Cap:? |
| Half polarized front cover by default. Polarized and transparent ones are optional. | Half polarized front cover by default. Polarized and transparent ones are optional. |
| Light Source:?White light | Light Source:?White light |
| Indicator: | Indicator: |
| Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Dimension: | Dimension: |
| 65.2 mm x 65.2 mm x 47 mm (2.6” x 2.6” x 1.9”) | 65.2 mm x 65.2 mm x 47 mm (2.6” x 2.6” x 1.9”) |
| Weight:?Approx. 280 g (0.6 lb.) | Weight:?Approx. 280 g (0.6 lb.) |
| Seal: IP67 | Seal: IP67 |
| Operating Temp:?0℃~+50℃ | Operating Temp:?0℃~+50℃ |
| Storage Temp:?-30℃~+70℃ | Storage Temp:?-30℃~+70℃ |
| Humidity:?20% to 95% RH, non-condensing | Humidity:?20% to 95% RH, non-condensing |
