NT 212N 2D Barcode Scanner Module - High-Speed USB/Bluetooth Barcode Reader for Retail, Warehouse & Inventory Management | Perfect for POS Systems, Mobile Shopping & Logistics Tracking

Product Description

Product Description

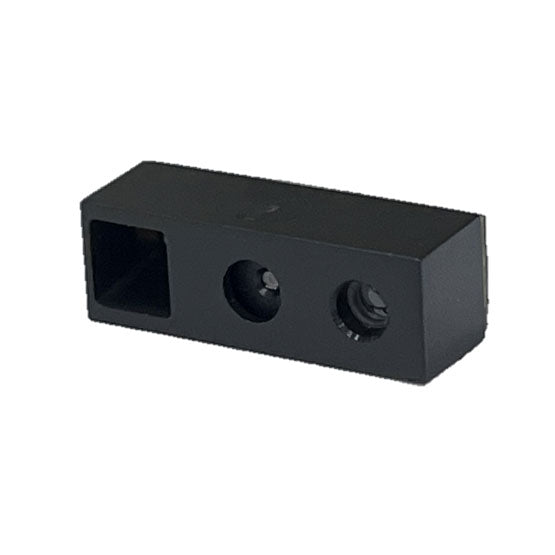

The NT-E52 is a barcode scanning engine developed by NETUM for embedded applications. It is capable of reading a wide range of mainstream 1D and 2D barcodes, simplifying the design process for barcode-enabled products and providing a cost-effective scanning solution.

The module uses a high-brightness LED for auxiliary illumination during exposure, enabling quick barcode decoding even in complete darkness. Its compact design allows for seamless integration into a variety of devices for barcode scanning purposes. The integrated core components ensure optimal performance, reliability, and stability while minimizing the risk of malfunctions.

Product Features

Core Technology

Proprietary decoding technology allows fast and accurate reading of both 1D and 2D barcodes.

Scanning Performance

• Efficiently scans printed, paper, and screen barcodes.
• Performs well even with worn, wrinkled, or damaged barcodes.

Compact Design

Highly integrated design combines the image sensor and decoder board, making it adaptable for various product integrations.

Multiple Interface Options

Offers USB and TTL-232 interfaces to meet diverse connectivity needs.

Specifications

Scanning Performance

• Sensor: 640 × 480 CMOS

• Illumination: White LED

• Aiming: Red LED

• Supported Barcode Types:

  • 2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Han Xin Code, Dotcode, Composite
  • 1D: Code 128 (ISBT 128, AIM 128, GS1 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code 11, Interleaved 2 of 5, Code 39, Code 93, Code 32, Codabar, Matrix 2 of 5, Industrial 25, IATA 25, MSI Plessey, GS1 DataBar, Plessey, Febraban, Composite

• Minimum Resolution: ≥3mil

• Depth of Field:

  • EAN-13: 50mm–330mm (13mil, 13 characters)
  • Code 39: 50mm–120mm (5mil, 7 characters)
  • Code 128: 50mm–340mm (13mil, 10 characters)
  • QR Code: 30mm–250mm (15mil, 30 characters)
  • Data Matrix: 40mm–145mm (10mil, 100 characters)
  • PDF417: 55mm–140mm (6.67mil, 30 characters)

• Contrast Ratio: ≥10%

• Scanning Angles:

  • Rotation: 360°
  • Pitch: ±55°
  • Skew: ±55°

• Field of View:

  • Horizontal: 43°
  • Vertical: 32°

Mechanical and Electrical Parameters

• Communication Interfaces: TTL serial, USB (HID-KBW or Virtual COM Port)
• Dimensions: 21.5mm × 8.5mm × 7.1mm
• Operating Voltage: DC 3.3V
• Operating Current: 140mA
• Standby Current: 11mA (USB) / 22mA (UART)

Environmental Parameters

• Operating Temperature: -20°C to +55°C
• Storage Temperature: -40°C to +70°C
• Operating Humidity: 5% to 95% (non-condensing)
• Ambient Light Resistance: 0–100,000 lux

Accessories

• Development Board: Includes trigger button and buzzer, supports RS-232 and USB output.
• Cables:
  • USB data cable for connecting the development board to the host.
  • RS232 data cable for connecting the development board to the host.
• Power Adapter: 5V adapter for powering the development board via RS232 cable.
