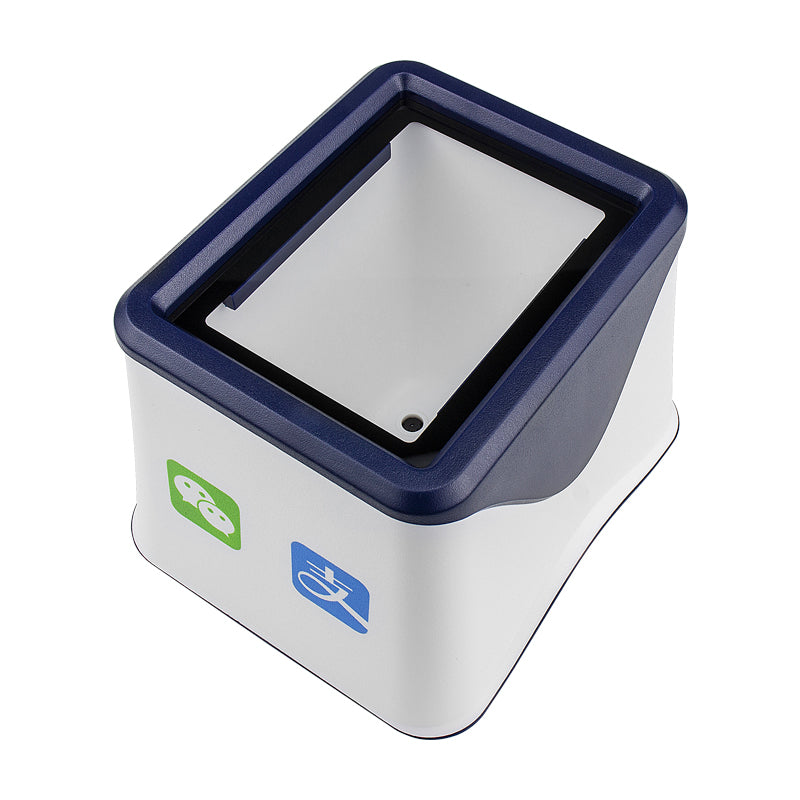

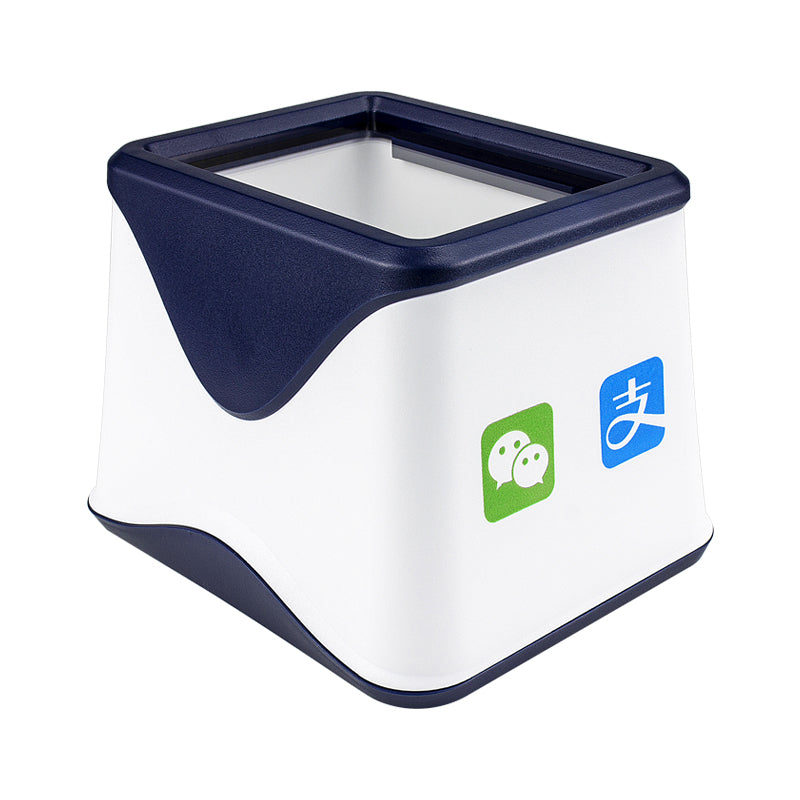

NT 2016 Wireless Bluetooth Barcode Scanner - Hands Free Portable 1D/2D QR Code Reader for Retail, Warehouse & Inventory Management - Compatible with iOS Android Windows Devices

Product Description

NT-2016 WiFi QR Code Scanner Specifications

Scanning Performance

• Sensor: 640×480 CMOS
• Illumination: White LED (6500K), 4 LEDs
• Supported Barcode Formats:
  • 2D: QR Code, Data Matrix, PDF417
  • 1D: Code 128, EAN-13, EAN-8, UPC-E, UPC-A, Interleaved 2 of 5, Code 39, Code 93, Codabar
• Reading Precision: 1D ≥ 5 mil, 2D ≥ 10 mil
• Reading Depth of Field:
  • EAN-13: 0mm - 90mm (15 mil, 13 characters)
  • Code 39: 0mm - 3mm (5 mil, 7 characters)
  • Code 128: 0mm - 100mm (13 mil, 10 characters)
  • QR Code: 0mm - 80mm (15 mil, 30 characters)
  • Data Matrix: 0mm - 90mm (10 mil, 30 characters)
  • WeChat Payment Code: 0mm - 350mm (on-screen code)
• Contrast Ratio: ≥ 20%
• Motion Tolerance:
  • 1D Barcode: 70mm/s (Code 39, 14 characters), 90mm/s (Code 128, 19 characters)
  • 2D Barcode: 110mm/s (V7_L)
• Scanning Angle: Rotation 360°, Tilt ± 55°, Skew ± 55°
• Field of View: Horizontal 35°, Vertical 27°

Transmission Modes

• Bluetooth Transmission
• WiFi Transmission

Communication Modes

• Bluetooth: Bluetooth 4.2
  • Bluetooth Modes: Bluetooth HID, Bluetooth SPP, Bluetooth BLE
• WiFi: WLAN IEEE 802.11 b/g/n

Secondary Development Support

• Bluetooth: SPP, BLE Development
• WiFi: TCP/UDP/MQTT/AWS-IoT

Mechanical/Electrical Specifications

• Communication Interface: USB (HID-KBW, Virtual Serial Port)
• Dimensions: 110mm x 130mm x 105mm
• Material: ABS

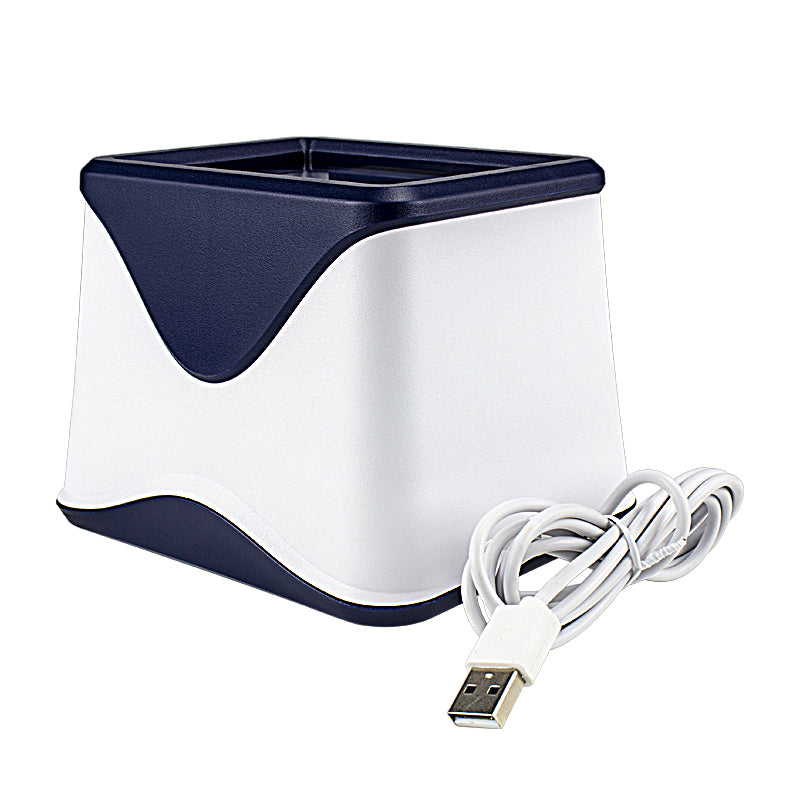

• Cable Length: 1.5 meters
• Operating Voltage/Current/Power Consumption: DC 5V ± 5% / 110mA / 550mW
• Standby Current: 80mA

Environmental Specifications

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +70°C
• Operating Humidity: 5% - 95% (non-condensing)
• Ambient Light Resistance: 0 - 100,000 LUX
• ESD Protection: ±8KV contact discharge / ±12KV air discharge
• Drop Resistance: Withstands a 1.2-meter drop onto concrete
