NT C06M High-Sensitivity CCD Barcode Scanner Module - Fast & Accurate Scanning for Retail, Warehouse, and Inventory Management

Product Description

Product Description

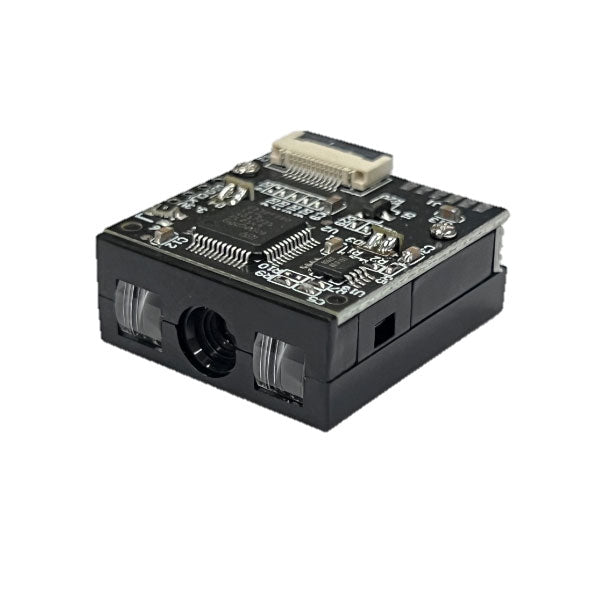

The NT-C06M is a CCD-based red-light barcode scanning engine designed by NETUM for embedded applications. Equipped with a 2500-pixel sensor, it delivers outstanding scanning accuracy and performance.

This module is tailored for OEM product integration, featuring a 32-bit high-speed processing unit capable of decoding at up to 300 scans per second. Its compact size makes it easy to embed into various devices for barcode scanning purposes. The integrated core components ensure reliable and stable performance, significantly minimizing the risk of malfunctions.

Product Features

Core Technology

Utilizes proprietary decoding technology to rapidly read various linear barcodes.

Highly Integrated

Equipped with a 2500-pixel sensor, the module easily decodes most mainstream 1D barcodes in the market.

Scanning Performance

• Linear barcode scanning: Quickly processes printed barcodes, paper barcodes, and on-screen barcodes.
• Reliable even with worn, wrinkled, or damaged barcodes.

Compact Design

With a height of less than 12mm, the module’s small footprint makes it easy to embed into other devices.

Multiple Interface Options

Supports universal data interfaces such as USB and TTL-RS232.

Physical Specifications

• Weight: <6g
• Dimensions: 26.5mm (L) × 24.5mm (W) × 12.2mm (H)
• Interface Types: USB/TTL-RS232/PS2
• Connector: FFC 12-pin, 0.5mm pitch (single-side or dual-side options available)
• Cable Options:
  • USB data cable for connecting the development board to the host.
  • RS232 data cable for connecting the development board to the host.
• Optional Power Adapter: 5V adapter for powering the development board with RS232 cable.
• Optional Development Board: Includes trigger buttons and a buzzer, supporting RS-232 and USB outputs.

Performance Specifications

• Light Source: Red LED, wavelength 620–630nm
• Optical System: Linear CCD Sensor
• Processor: ARM 32-bit
• Resolution: 2500 pixels
• Decoding Capability: ≥5mil/0.127mm @ PCS90%
• Reading Precision: ≥3mil
• Scanning Modes: Trigger scan, continuous scan, automatic sensing, or command control.
• Reading Angles:
  • Pitch: ±60°
  • Roll: ±30°
  • Skew: ±60°
  • (Conditions: CODE39, 10mil/0.25mm, PCS90%)
• Operating Voltage: DC 3.3V ±5%
• Current: 200mA (working), 30mA (standby)
• Power Consumption: 660mW
• Print Contrast Ratio: ≥30%

Supported Barcode Types

EAN-8, EAN-13, Codabar, CODE11, CODE39, CODE93, CODE128, China-Post, GS1-128, GS1-Limited, GS1-Omnidirectional, GS1-Expanded, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, ITF14, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, Telepen, Brazil Bank Barcode.

Decoding Range

Environmental Parameters

• Operating Temperature: -20°C to 50°C
• Storage Temperature: -40°C to 70°C
• Relative Humidity: 5% to 95% (non-condensing)
• Ambient Light Resistance: Up to 100,000 lux
• Drop Test: Survives 1.2-meter drops, 100 times.
• Temperature Cycling:
  • High Temp.: 60°C for 30 minutes
  • Low Temp.: -20°C for 30 minutes
• Transportation Vibration Test: 10 hours @ 125 RPM
