Product Description

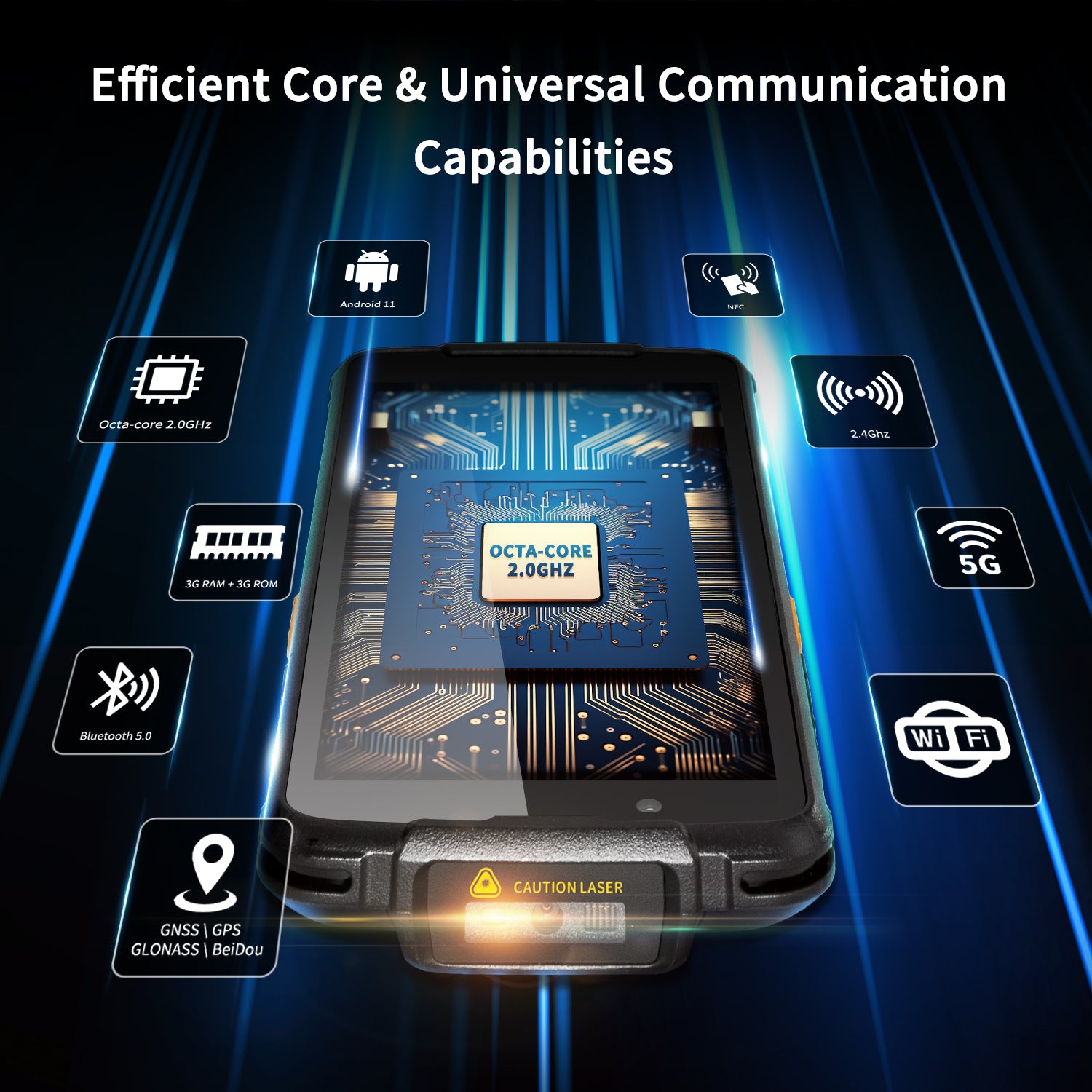

PDA-Q700 Specifications
- OS Android 11
- Octa-core 2.0GHz
- Bluetooth 5.0
- 3GB RAM and 32GB ROM memory
- NFC
- 5000mAh

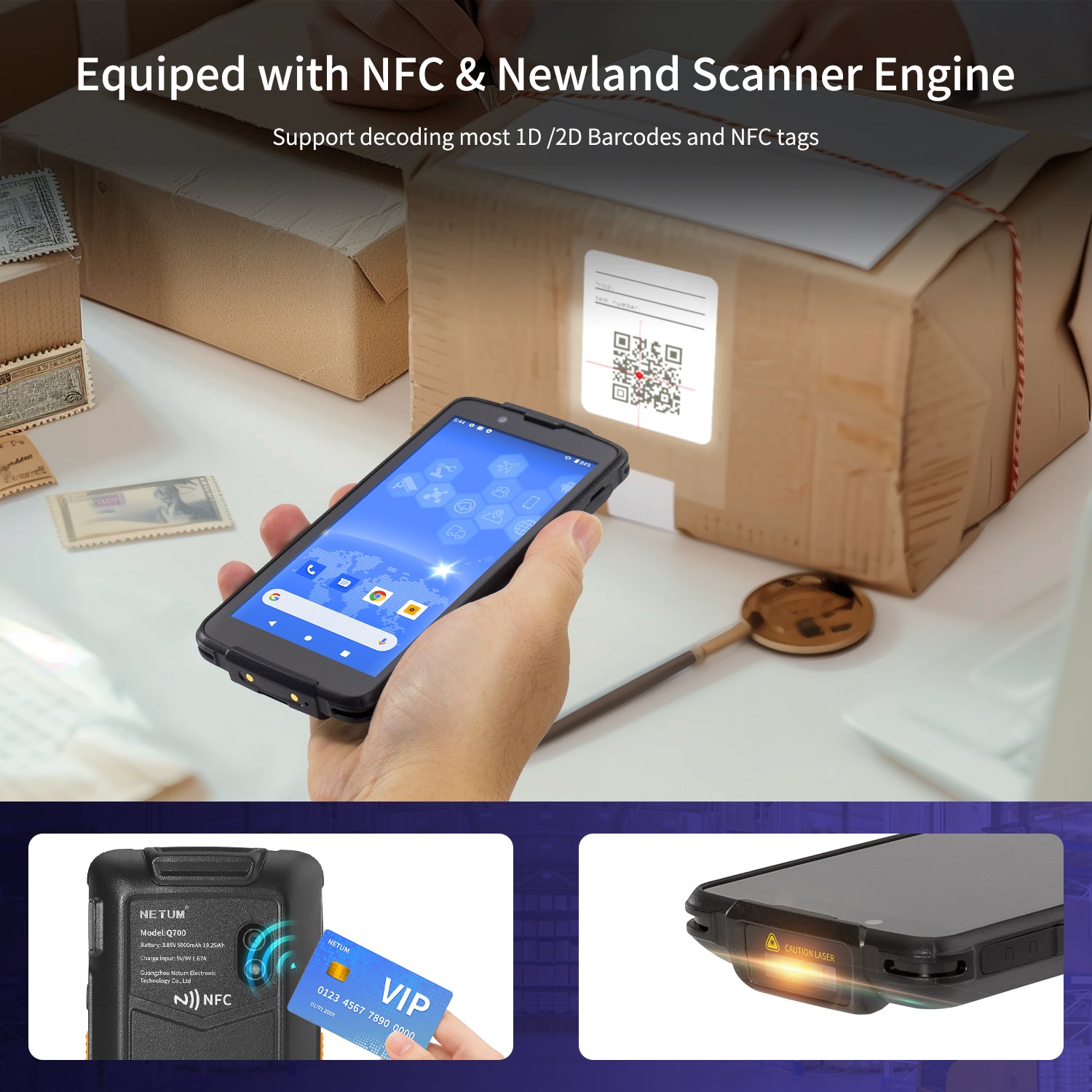

- Scan Engine: Newland NLS-CM60
- GNSS, GPS, GLONASS, BeiDou
- Supports 1D and 2D barcodes
| CPU | Octa-core 2.0GHz |
| OS | Android 11 |
| RAM | 3GB |
| ROM | 32GB |
| Camera | Rear camera 13MPAF High light LED flash Front camera 5MP FF |

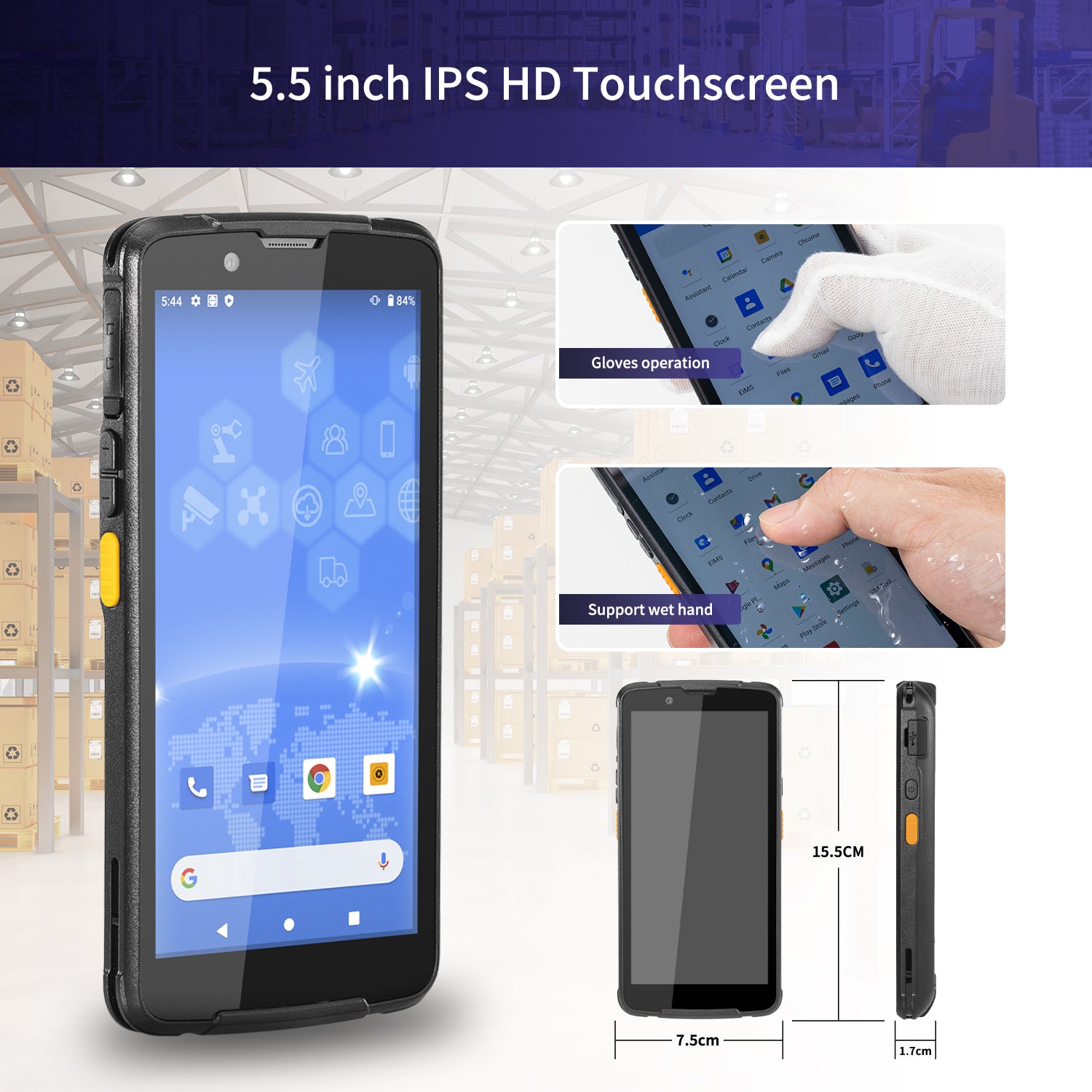

| Screen | 5.5inch IPS HD touch screen |
| Resolution | 720*1440 |
| Touch?screen | 5 point capacitive touch screen |
| Dimension | 155.15*74.5*16.8mm |
| Battery?capacity | 5000mAh |
| Charging | PEfast charging,full charging time<4 hours |
| BT | BT5.0 BLE |
| Wi-Fi | IEEE 802.11a/b/g/n/ac 2.4G 5G dual band Support fast roaming |
| WWLAN | FDD-LTE B1/B3/B5/B7/B8 TDD-LTE B38/B39/B40/B41 WCDMA??? B1/B2/B5/B8 GSM B2/B3/B5/B8 CDMA/EVDO???? BC0/BC1 |
| GPS | GPS+BD+GLONASS |
| Audio | Dual front stereo speakers,Volume95db ±3db(test distance:10cm) |
| Sensor | Geomagnetism,acceleration,light perception |
| Interface | 2Nano SIM card slots or 1Micro SD card slot+1Nano SIM card slot SD card slot up to 256G USB TYPE-Cinterface,support OTG Fast charging 5V/9V1.67A Bottom charging pins |
| Button | 5 physical keys (1 power key,2voloum keys,2 function keys) |
| Notification | Sound,vibration,LED prompt |
| Operating temperature | -20℃ to+55℃ |
Storage temperature | -30℃ to+70℃ |
| Operating humidity | 5%to 95% |

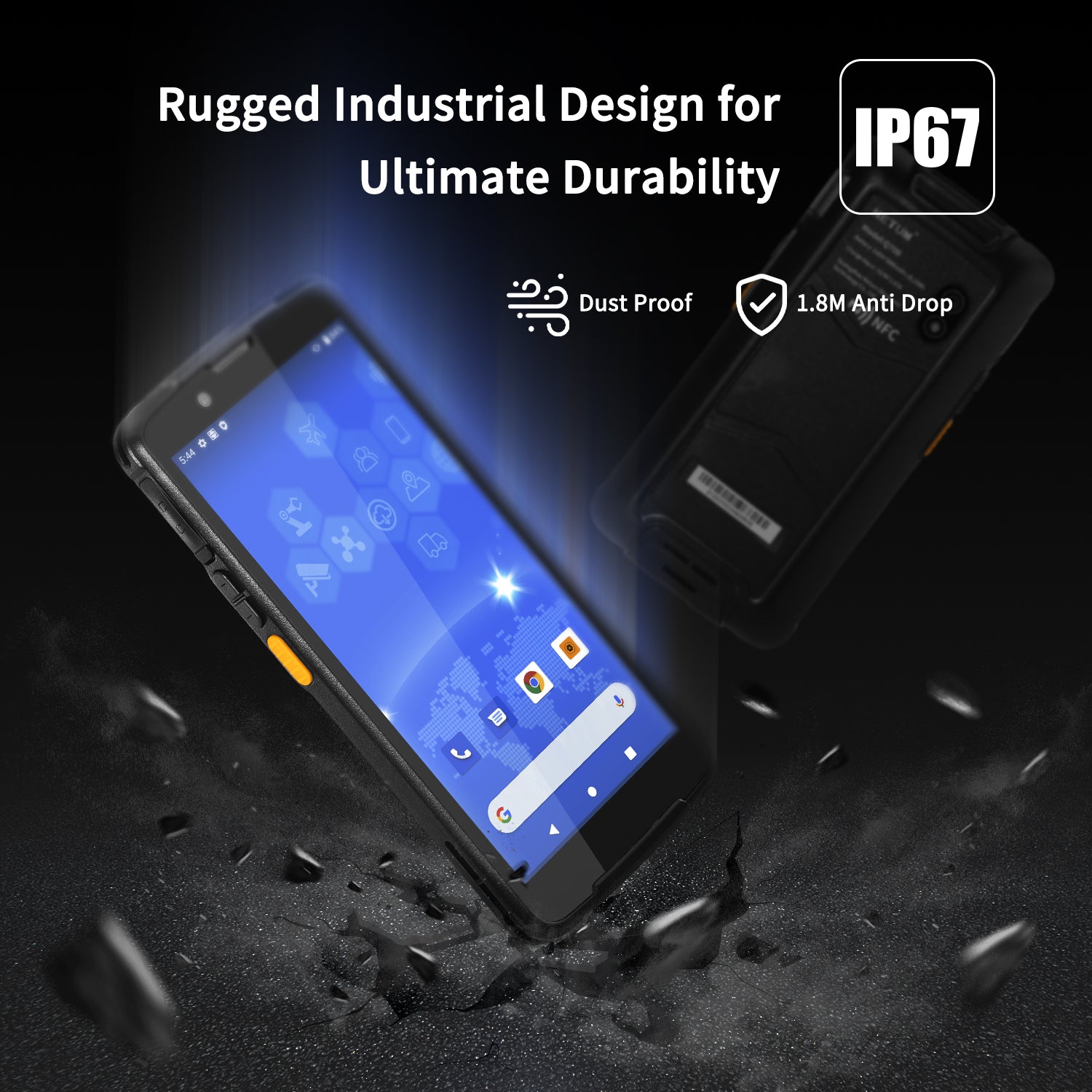

| IP class | IP67 |
| Drop test | Sixsides can stand the impact of 1.8 metre drop to concrete foor. |
| ESD | ±15kV Air Discharge,±8kV Contact Discharge |
| NFC | Supported protocol:ISO14443A/B,ISO15693 Reading distance:0~5cm |
| Barcode Scanning | NLS-CM60 EAN13,EAN8,UPCA,UPCE,Code 128, Code 39,Codabar,UCC/EAN128,RSS,ITF, ITF14,ITF6,ISSN,ISBN,Standard 25, Matrix 25,Industrial 25,Plessey,MSI Plessey, Code 11,Code 93,PDF417,QR Code, DataMatrix,AZTEC,Hanxin Code,Maxicode, Micro QR,Micro PDF417,Composite |
PDA-8100 Specifications
- OS: Android 9
- CPU: 2GHz, Quad 12nm
- MEMORY: 2G+16G
- Scan Engine: Datalogic E3200-LE,?
PDA-8200 Specifications
- OS: Android 9
- CPU: 2GHz, Octa Core, 12nm
- MEMORY: 3G+32G
- Scan Engine: Datalogic E3250,?Excellent DPM barcode decoding capability to read various DPM barcodes
Communication Performance
a) 4G LTE, Global Band
b) Enhanced the design of WIFI FEM, increased the 20% of signal coverage
c) Bluetooth 5.0,low power, long distance, perfect matching wireless printer
Industrial Protection
a) IP67 industrial protection
b) Optimized structure for battery to ensure slim form factor

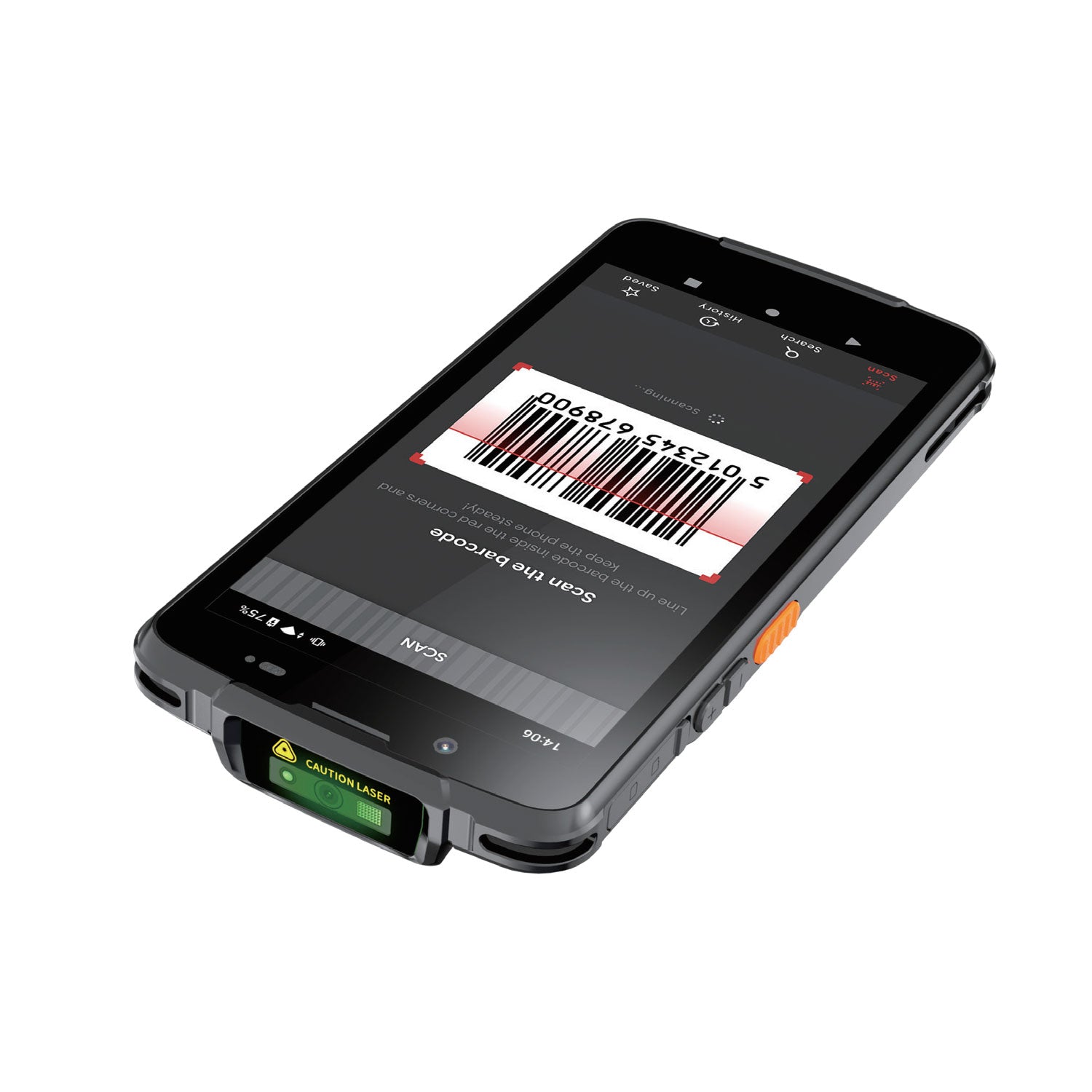

Scanning Performance
a) New generation slim 2D imager scan engine
b) Support VGA and megapixel versions
c) Licensed Datalogic decoding technology
Unique Product Characteristics
a) Quad core or Octa core processor, long life cycle
b) Support Android 9 and Android 10 upgrades
c) Large battery capacity but refined power consumption, 3 hours charging time but 15 hours working duration, 50 days standby duration.
d) Free to install APPLOCK, Easy Deploy and other system management software for efficient management and deployment
e) Accurate Reading Ability, only decode bar code label that's close to the center of the aiming pattern, even when many labels are crowded
?
| Specifications | |
| OS | Android 9 |
| CPU | 2GHz, Quad/Octa Core, 12nm |
| MEMORY | 2+16/3+32 |
| Extend Slot | MicroSD, ?support SDHC, up to 64GB; |
| One micro SIM? connector? | |
| PC Communication | USB 2.0 OTG? : Type-C; Support TYPE-C Headset |
| Sensors | Light, Proximity, 3D G sensor, Hall, E compass, gyroscope |
| LED | Charging and System status |
| Charging Time | <3.5 hours (Room Temperature) |
| <4 hours (35°C) | |
| Operation Duration | 14 hours |
| Data Collection | |
| Scan Engine | Mobydata E3200-LE/E3250-LE |
| 2D | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; |
| Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites; | |
| GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; | |
| GS1 DataBar Stacked Omnidirectional; MacroPDF; | |
| MicroPDF417; PDF417; UPC A/E Composites | |
| 1D | Auto discriminates all standard 1D codes including GS1 |
| DataBar? linear codes. | |
| Post | Australian Post; British Post; China Post; IMB; Japanese |
| Post; KIX Post; Korea Post; Planet Code; Postnet; Royal | |
| Mail Code (RM4SCC) | |

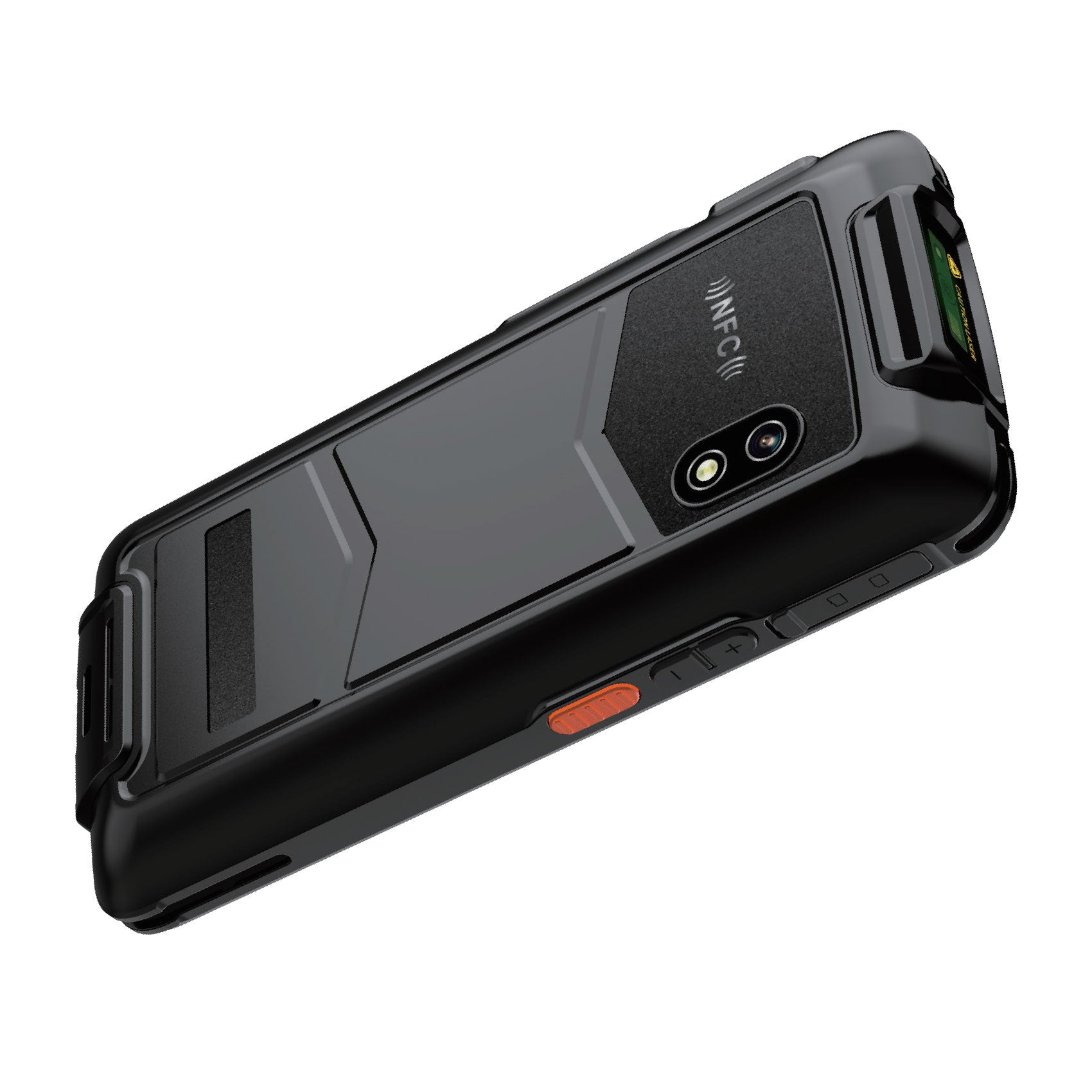

| NFC | 13.56MHz NFC |
| Wireless Connectivity | |
| WLAN | 802.11 ac/a/b/g/n |
| WWAN | TDD-LTE (B38/B39/B40/B41) |
| FDD-LTE (B1/B3/B7) | |
| UMTS/HSDPA/HSPA/HSPA+ (900/2100 MHz) | |
| GSM/EDGE/GPRS (900/1800MHz) | |
| VOLTE | LTE CAT6 |
| CA | Downlink 300Mbps, B1/B3/B7/B40/B41 |
| WPAN | BT 4.2/BLE |
| GPS | GPS/A-GPS, GLONASS, Beidou |
| Physical Specifications | |
| LCD | 5 inch, IPS, HD, visible under sunshine |
| Touch | GFF Captive Touch, Dragontrail Glass |
| Camera | Auto focus 13Mega, with flash LED |
| Keypad | Left/Right Scan Key, Volume Key, Power Key |
| Back, HOME, Switch | |
| Receiver | Support |
| Speaker | Min 90db at 10cm-1KHz Voice |
| Mic | Noise Reduction Mic? |
| Charging IO | USB type-C |
| Charging Pad | |
| Battery | 4000mAh,Non replaceable |
| Dimension | 158mm×76.2mm×12.6mm |
| Weight | 226g |
| Environmental Specifications | |
| Operation Temperature | -20°C ~ +50°C |
| Storage Temperature | -30°C ~ +70°C |
| Humidity | 10% ~ 90% |
| Drop | 1.5m, concrete |
| Tumble | 300hits, 0.5m, Steel |
| IP | IP67 |
| ESD | ±8kV Contact, ±15kV Air |
| Keypad lifecycle | 300K |
| Accessories | |
| Charging Cradle | Support 1 device |
| Gift Box | |
| Gift Box | Device, Battery, QSG, Adapter, USB cable.? |
?
?
