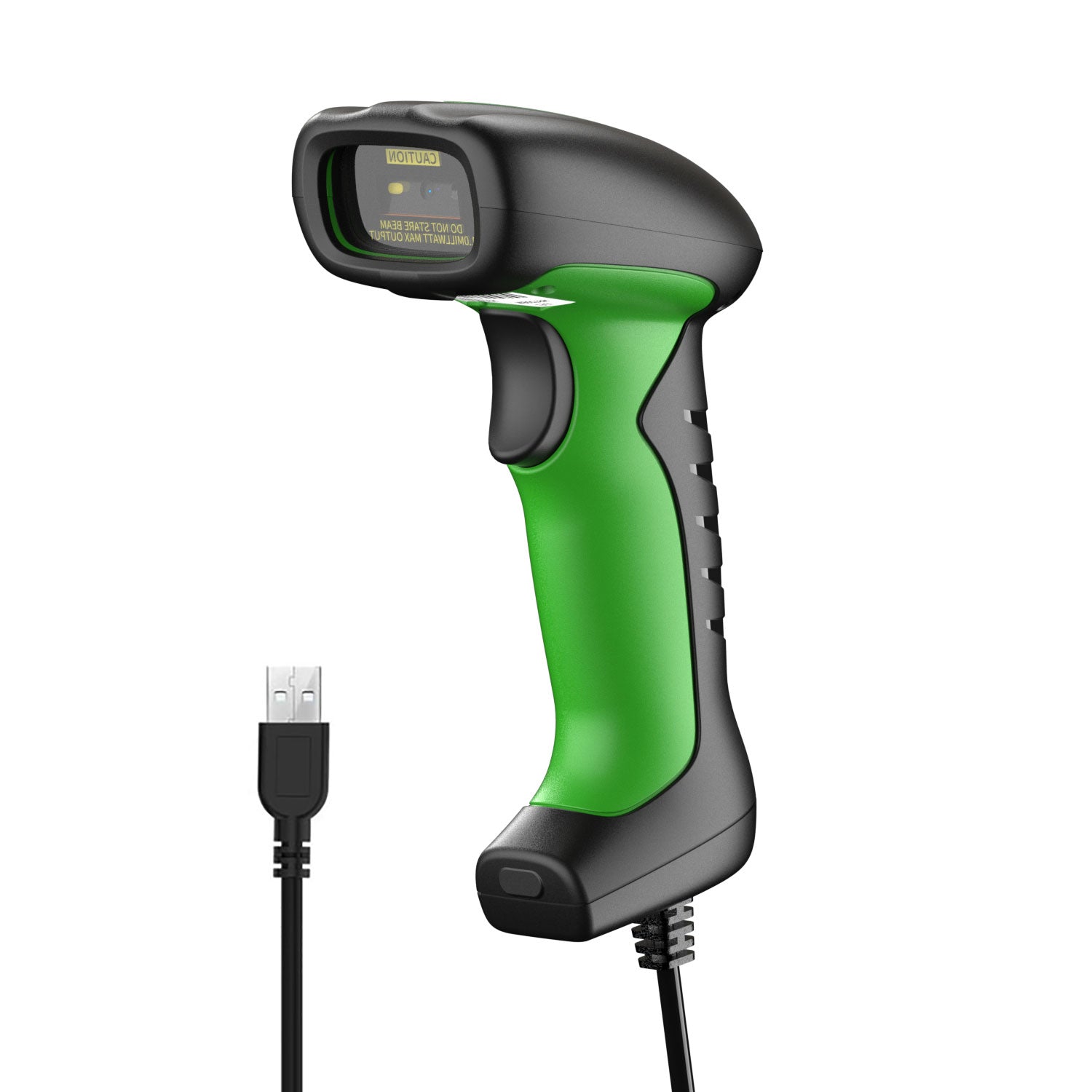

NT 1920 Industrial USB 2D Barcode Scanner - High-Speed Scanning for Retail, Warehouse & Logistics | Durable Handheld Barcode Reader for Inventory Management, Shipping & POS Systems

1

Performance

1.1

Image Sensor

1280x800 (Megapixel)CMOS

1.2

Aiming

White?LED（650nm）

Yellow LED

1.3

Resolution:

1280*800

1.4

Field of View：

Horizontal：44°，Vertical：28.5°

1.5

Scan Angle：

Roll：360°，Pitch：±55°，Skew：±70°

1.6

Symbologies：

1.7

Typical Depth of Field：

1.8

Resolution:

1D:≥3 mil ??2D:≥5 mil

1.9

Print Contrast:

≥20%

2

Working Environment

Environmental

2.1.1

Operating Temperature:

-30° C to 60° C

2.1.2

Storage Temperature:

-40°C to 70° C

2.1.3

Humidity:

95%RH，122°F/50°C?Non-condensing

Physical

2.2.1

Operating Voltage:

5 VDC +/-10%

2.2.2

Max Current:

500mA

2.2.3

Dimension:

Scanner Size: 180*65*95mm Charge Cradle Size：170mm*100*80mm

2.2.4

Weight:

256g

2.2.5

Color:

Yellow +Grey

2.2.6

Cable Length:

1.2m

Wireless

2.3.1

Prompt Mode:

Buzzer, LED indicator, vibration

2.3.2

Scanning Method:

Trigger Mode/Auto Sense Mode

2.3.3

Interface:

USB, USB COM,RS-232（Optional）

3

Certificate &Regulation

6.1

Anti-drop：

Withstand drop from 3 meters high

6.2

Certificate：

CE ROHS FCC

6.3

Industrial Level：

IP 67
